Power separated from the light

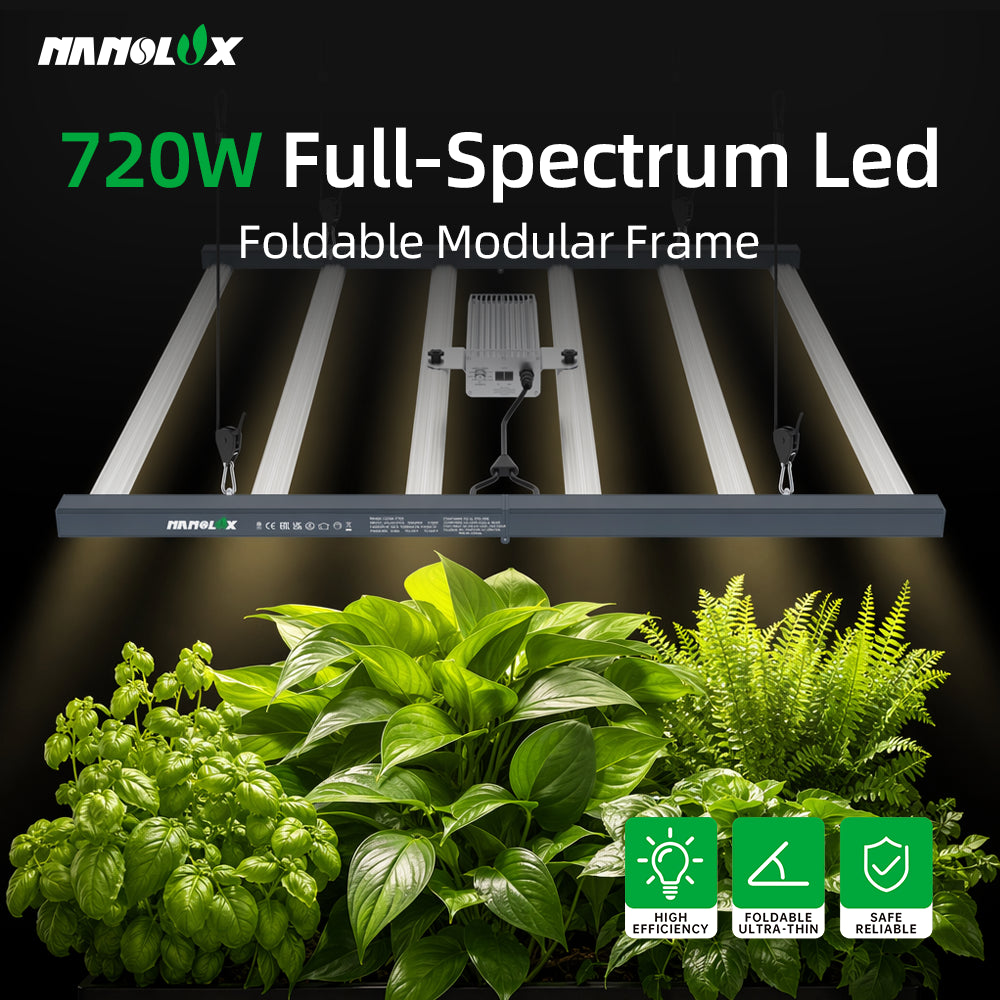

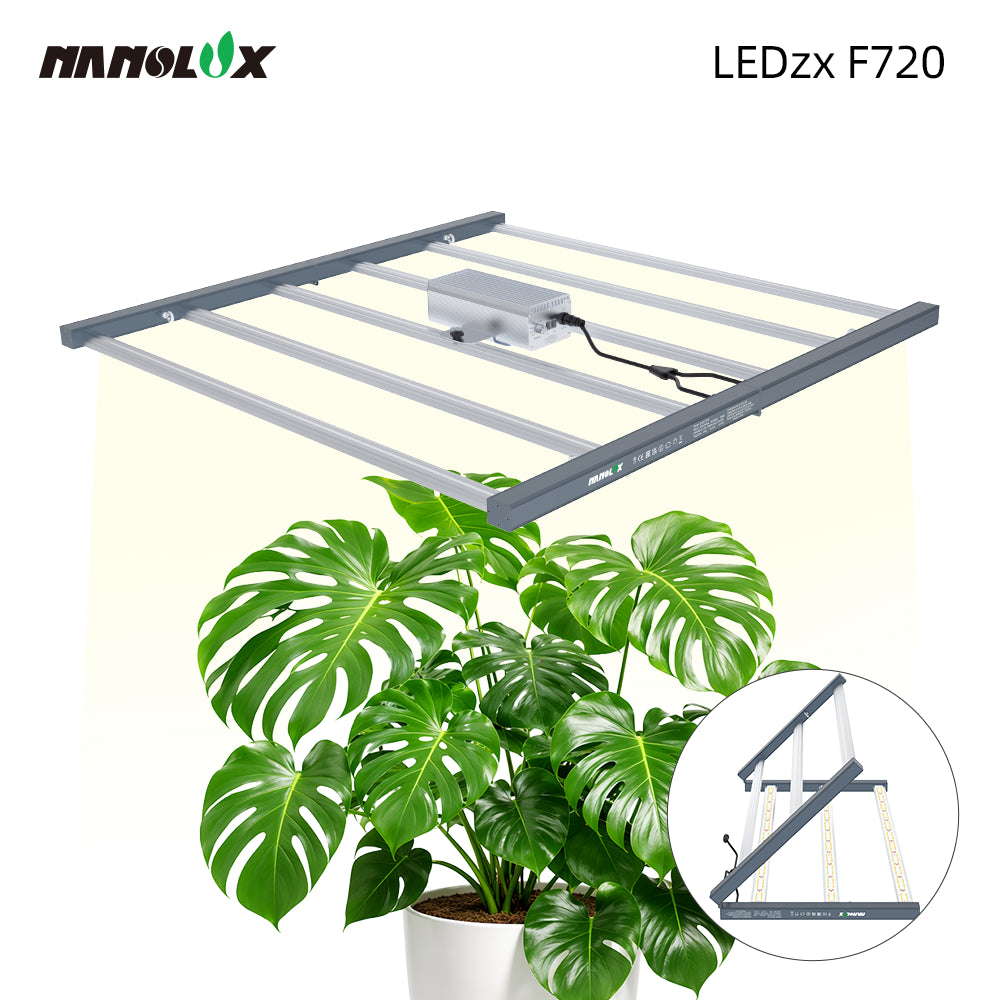

The LEDzx F720 is a foldable 720W full-spectrum fixture for full-cycle indoor cultivation. It pairs 1950 umol/s PPF, 2.7 umol/J PPE and an IP65-rated fixture with an external driver for a cleaner installation.

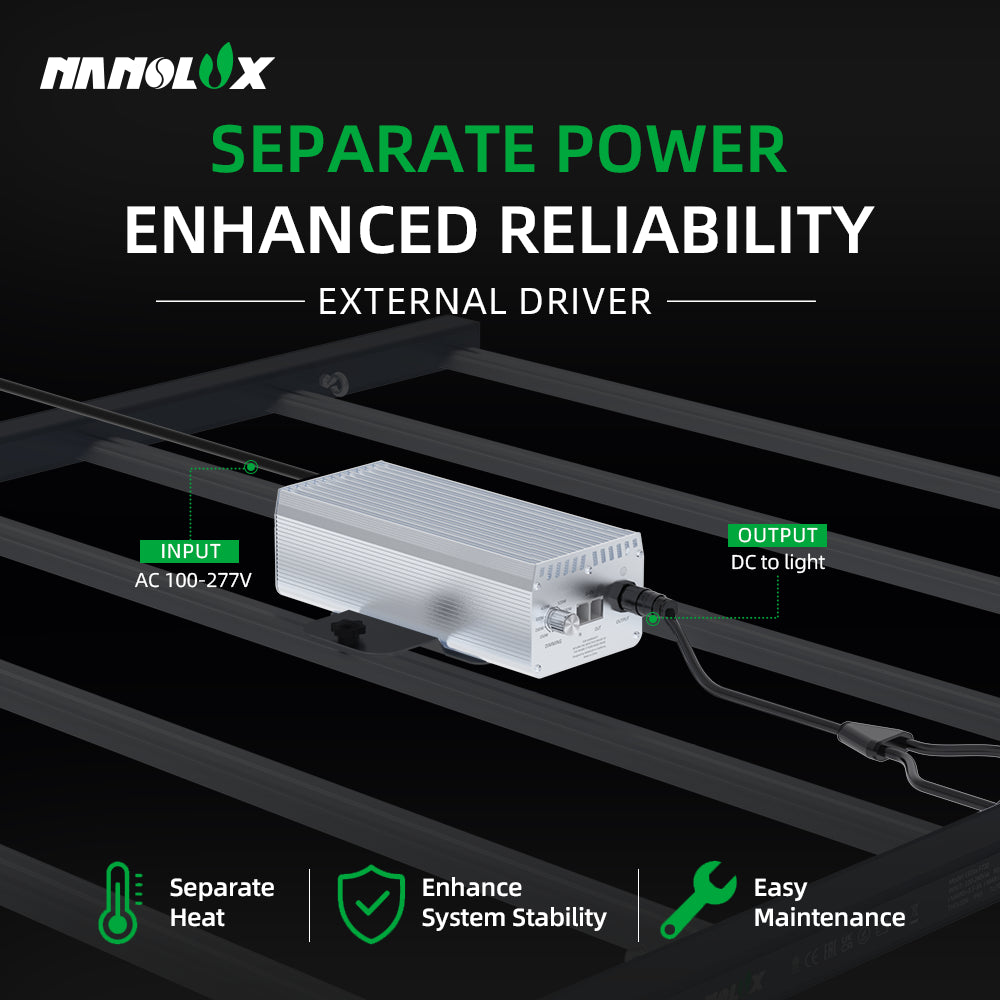

External driver, cleaner heat management
The external driver keeps power electronics away from the LED frame, helping reduce heat concentration at the fixture. Passive cooling and soft-start driver design support stable daily use.
Balanced 400-700 nm output
The 400-700 nm full-spectrum output is designed as a practical all-stage light source, supporting propagation, vegetative growth and flowering without adding unverified UV, IR or app-control claims.

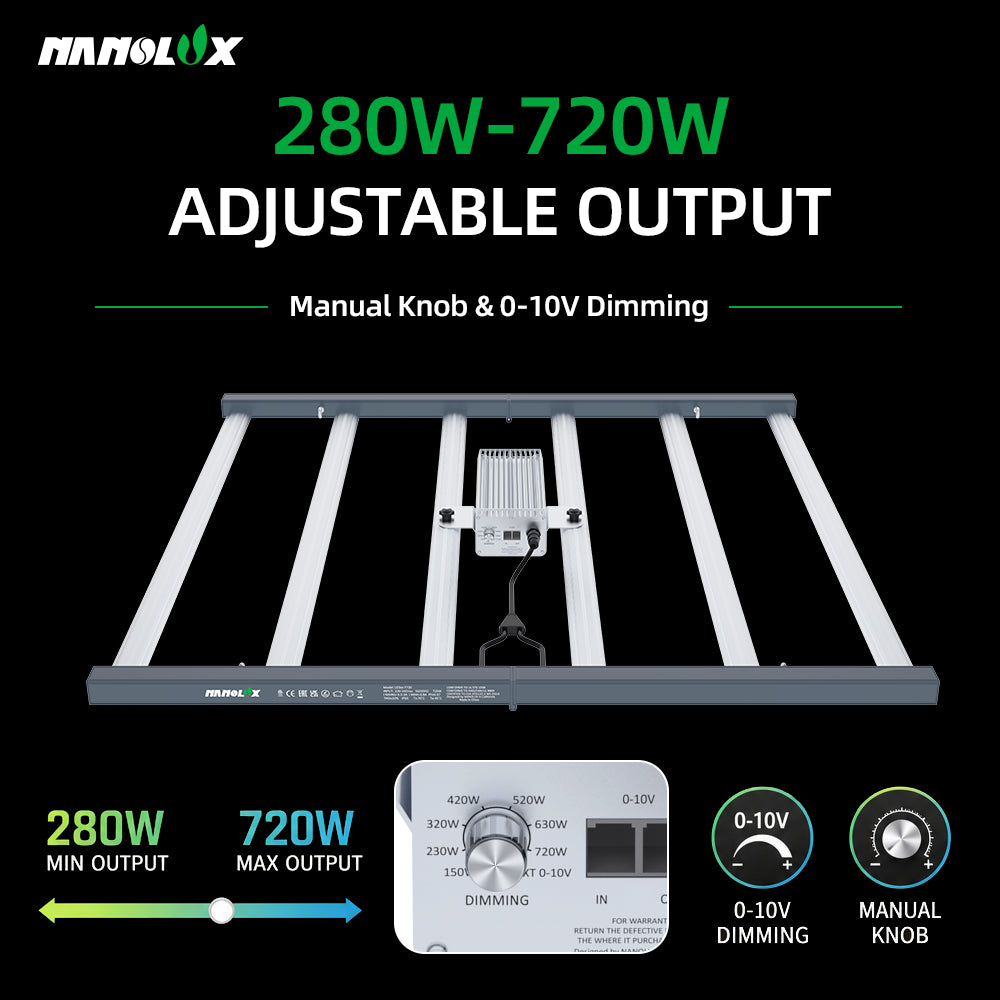

Set the output to the room
Adjust output from 280W to 720W with the manual dimming knob, or connect compatible 0-10V control for a more structured lighting system. Start conservatively, then tune intensity to canopy response.
See the LEDzx F720 in action
Watch the LEDzx F720 product video for a closer look at the fixture, frame and lighting system.
PPFD mapping at 30 cm
Use the PPFD map as a planning reference for fixture height, crop stage and room layout. The readings shown are measured at 30 cm height with input power set to 720W.
120-degree beam angle for canopy planning
The fixture is specified with a 120-degree beam angle. The distribution reference helps growers plan canopy placement and fixture height for more consistent light across the grow area.

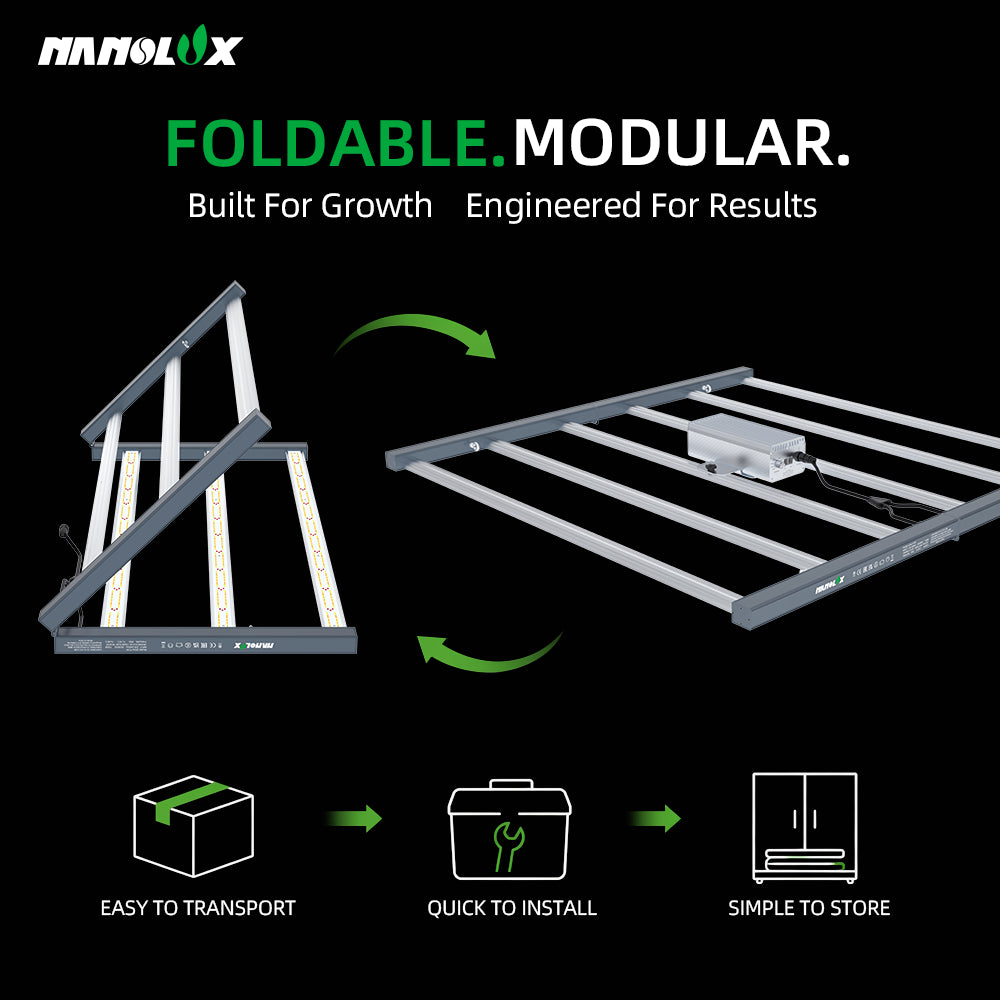

Move, hang, connect and set output
The foldable frame reduces the fixture footprint for transport and storage. The modular bar layout and external driver make installation, cable routing and service access more practical.
Plan the power connection first
This LEDzx F720 listing is specified for AC 220-240V systems. Confirm local electrical requirements, room ventilation and suitable hanging hardware before installation.
LEDzx F720 specifications
Review the electrical, optical and installation data before planning your grow space and power connection.
EU input: This model is specified for AC 220-240V systems. Follow local electrical requirements and the included installation instructions.
Regional availability: EU delivery options and delivery estimates are confirmed at checkout based on the destination and available warehouse inventory.
| Product name | LEDzx F720 |
| Technical model | Orion 2 720W |
| Input power | 720W |
| PPF (400-700 nm) | 1950 umol/s |
| PPE (400-700 nm) | 2.7 umol/J |
| Light spectrum | Full spectrum, 400-700 nm |
| Output adjustment | 280W-720W |
| Dimming | Manual knob and 0-10V |
| Input voltage | AC 220-240V |
| Beam angle | 120 degrees |
| Recommended hanging height | 20-60 cm above canopy |
| Product dimensions | 1080 x 1100 x 83 mm |
| IP rating | IP65 |
| Cooling method | Passive cooling |
| Power factor | >= 0.97 |
| Total harmonic distortion | <= 15% |
| Operating temperature | -20 C to 35 C |
| Operating humidity | 0-95% |
| Lifetime | L90 >= 50,000 hours |
