Description
High-output lighting, organized around the canopy
The Nanolux LED SN860 Pro is an 860W professional LED fixture built around an 8-bar foldable frame. It delivers 2500 umol/s PPF and 2.90 umol/J PPE in a format designed for controlled indoor grow spaces.

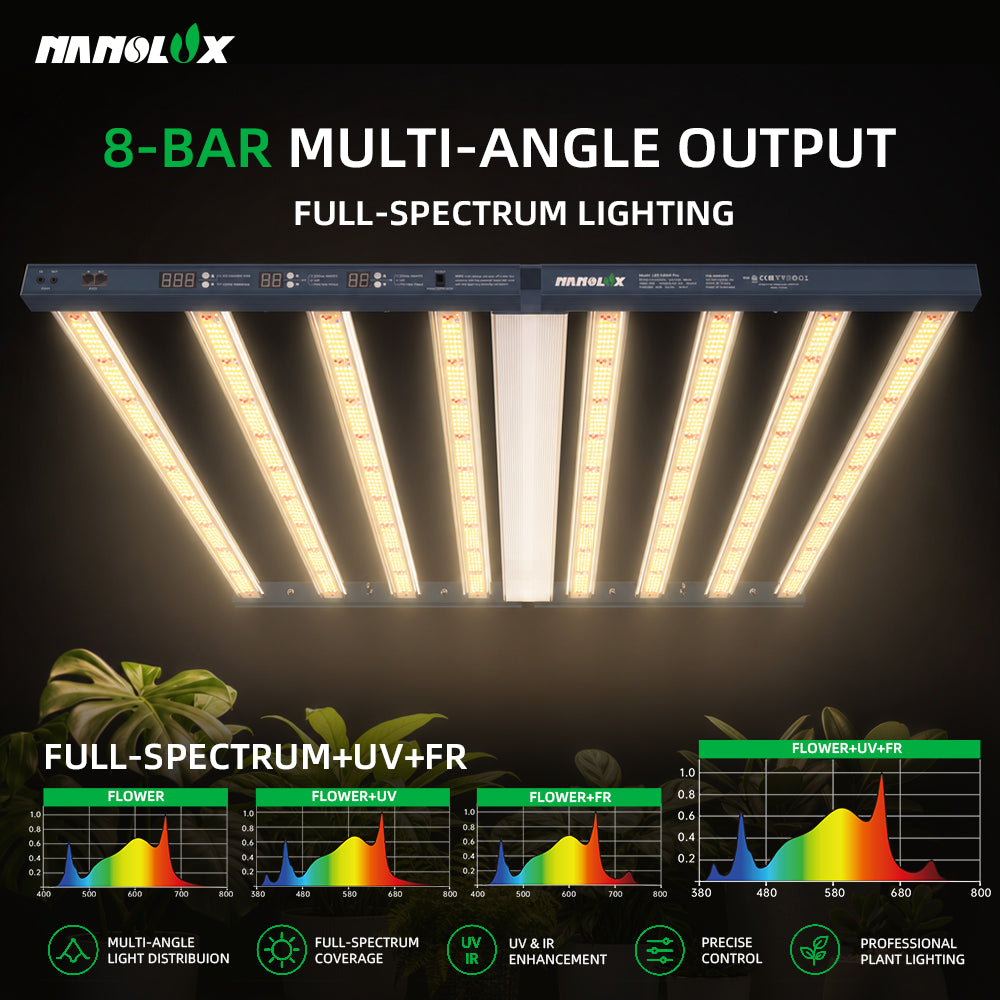

Shape the lighting routine around the room
The SN860 Pro detail system presents multiple spectrum modes in one fixture. Use the available control design to plan a more structured lighting routine for the grow space.

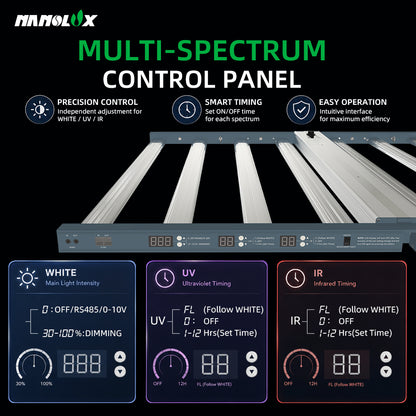

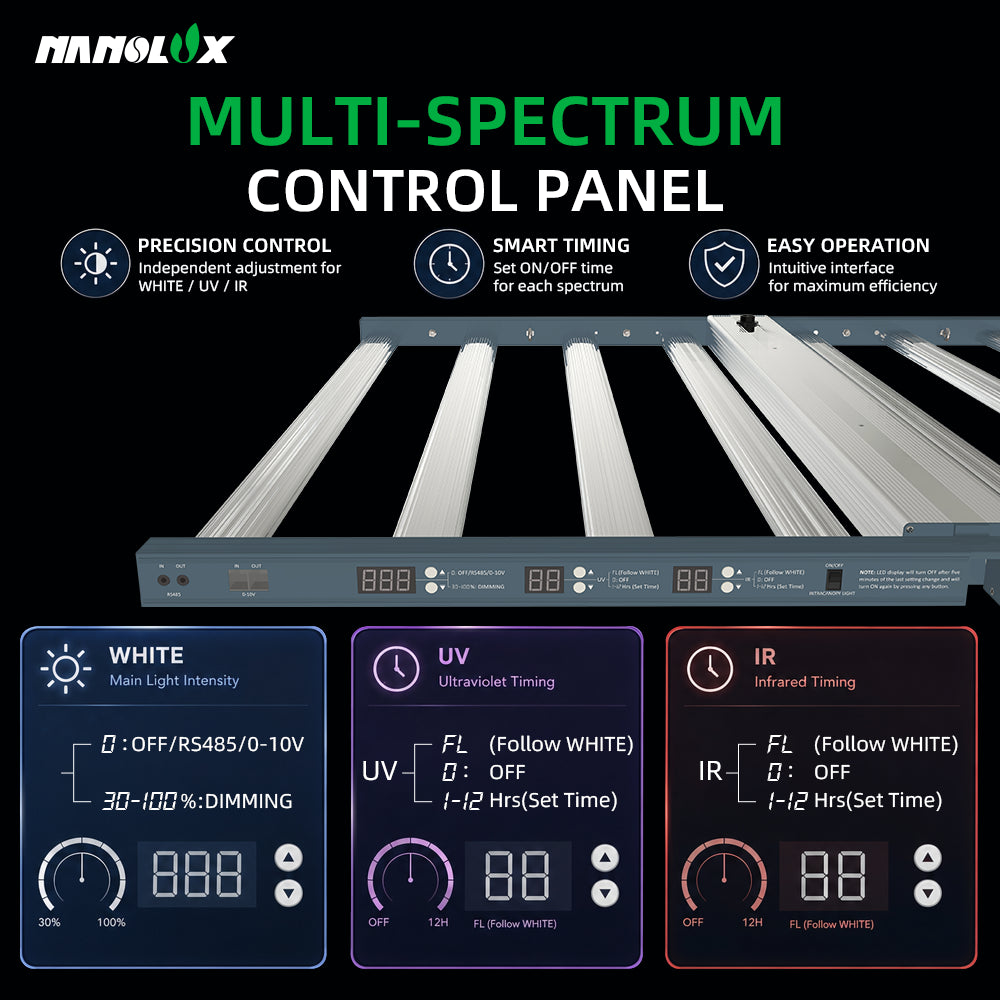

Put adjustment where the grower needs it
The control-panel layout keeps spectrum and output adjustment visible at the fixture level. Final control channels, ranges and external-control compatibility should be confirmed against the approved technical specification before publication.

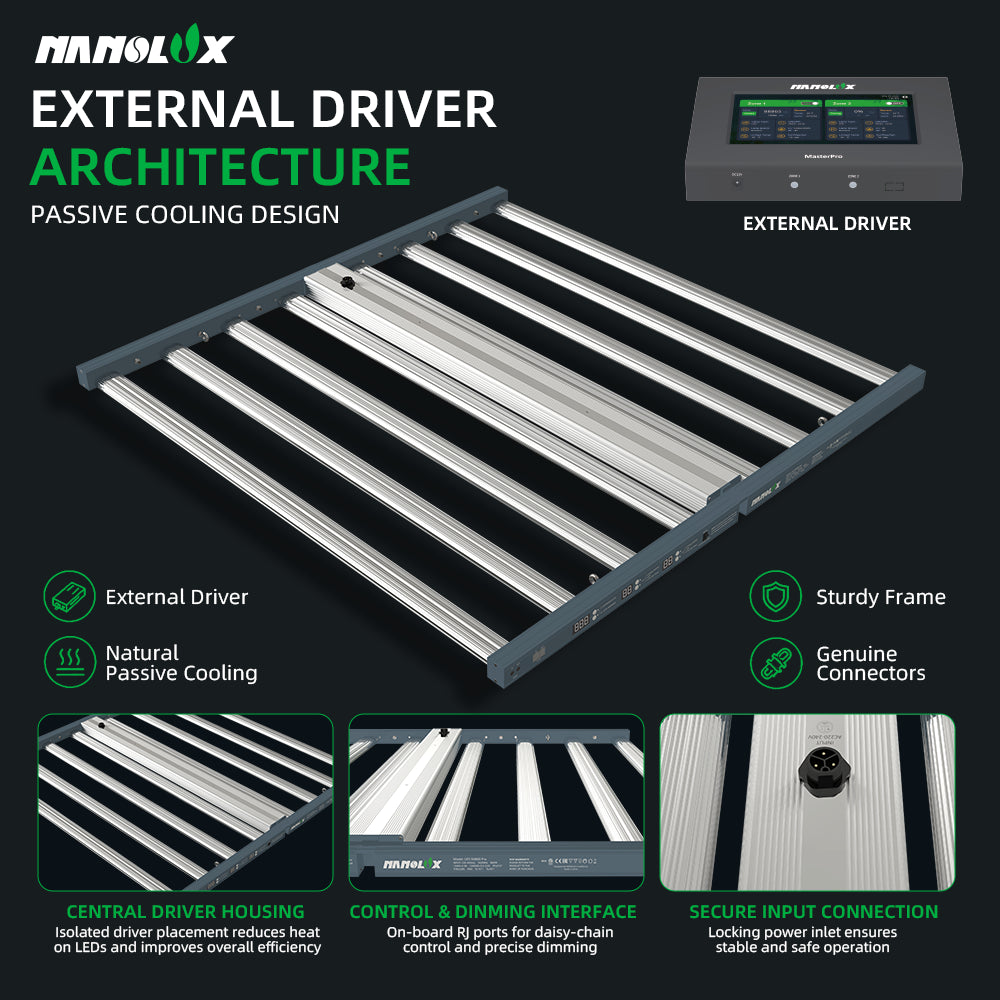

Separate the driver from the light frame
The SN860 Pro uses an external-driver layout with a passive-cooling design shown in the product materials. This keeps the fixture layout easier to inspect during installation and service planning.
Use the numbers to plan the room
The supplied output reference lists 2500 umol/s PPF and 2.90 umol/J PPE. Use these values with actual hanging height, canopy density and room conditions when planning placement and intensity.

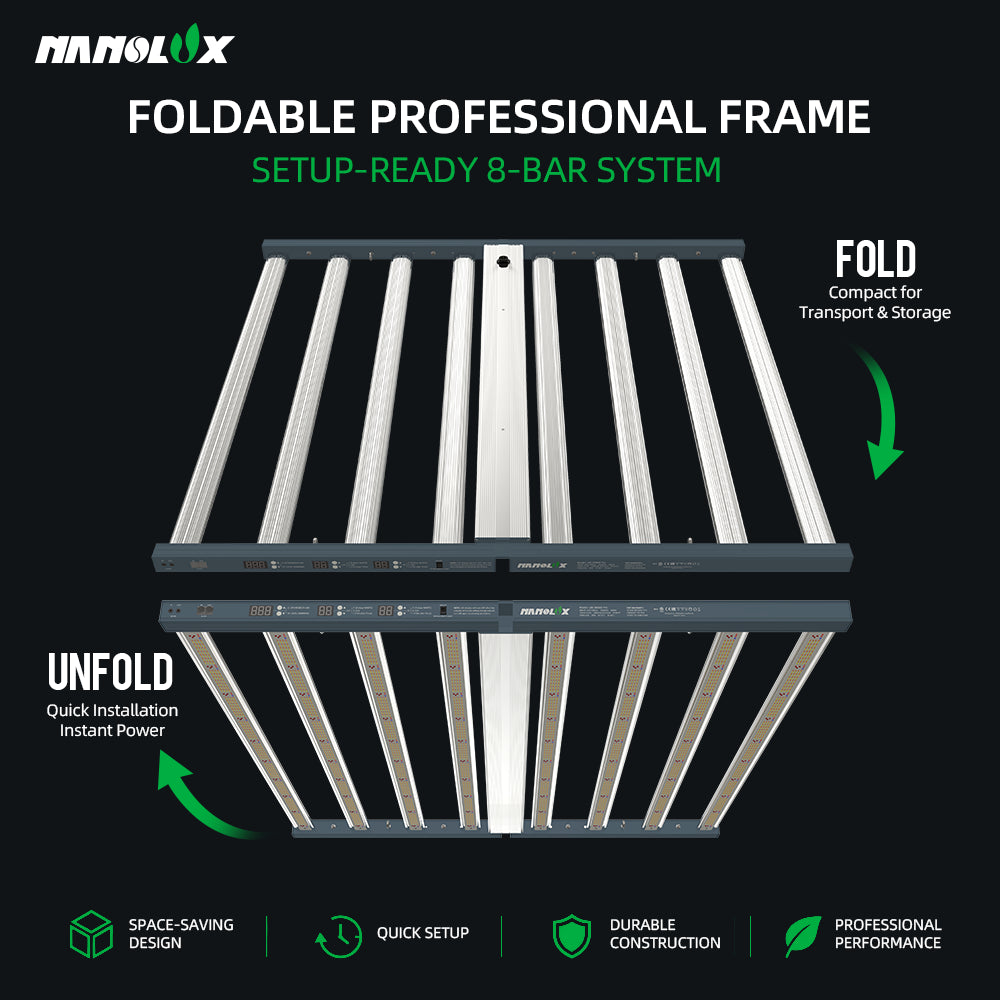

Unfold the fixture when the room is ready
The foldable frame helps reduce the fixture footprint during transport and storage. The supplied setup reference shows a recommended hanging range of 20-60 cm above the canopy.
Plan the footprint before you hang
The fixture measures 1135 x 1110 x 60 mm. Confirm the available hanging points, driver position, cable path and canopy clearance before installation.
Ready to install, connect and set
Use the supplied installation sequence as the starting point: unfold the frame, secure the fixture, connect the external driver and set the output for the room. Follow the included manual and local electrical requirements.
LED SN860 Pro specifications
Review the core electrical, optical and installation data before planning the grow space.
Planning note: Actual light distribution depends on hanging height, canopy density, room layout and operating conditions. Confirm unresolved control, voltage, certification and protection details against the final approved specification.
| Product name | Nanolux LED SN860 Pro |
| Input power | 860W |
| PPF | 2500 umol/s |
| PPE | 2.90 umol/J |
| Light bars | 8 |
| Beam angle | 120 degrees |
| Recommended hanging height | 20-60 cm above canopy |
| Fixture dimensions | 1135 x 1110 x 60 mm |
| Frame | Foldable |
| Driver layout | External driver architecture shown in supplied product materials |
